Erf 1139, 6 Koraal Avenue, Paradise Beach Where the fence goes
Setting-out sheet for the builder · all four sides · from the registered Surveyor-General plan General Plan 12794 (L.G. No. 9249/89) · 18 November 2026
Find the 4 corner pegs. They are 12 mm iron pegs in the ground (section 2).
Pull a string tight from peg to peg. The string is the boundary. Nothing else is.
Tape all 4 sides and both diagonals. Compare with the table in section 3. Every one must be within 5 cm.
Build the fence inside the string. Post centres 200 mm inside. Nothing may cross the string (section 4).
Peg missing, or a measurement out by more than 5 cm? Stop and phone Alex. Do not guess and do not move a peg.
1 · The plot and its four sides
Side
Length
What is on the other side
Street Peg 1 → Peg 2
16.00 m
The street (cul-de-sac off Koraal Avenue). The gate goes on this side.
East Peg 2 → Peg 3
37.69 m
Erf 1140
South Peg 3 → Peg 4
27.00 m
Erf 1150 (11 Swemmer Street), the whole length
West Peg 4 → Peg 1
45.00 m
One straight line past three plots. From Peg 4: 20.00 m Erf 1138 (80 Johan Muller) 20.00 m Erf 1137 (78 Johan Muller, our office) 5.00 m Erf 1822 (76 Johan Muller)
All the way round
125.69 m
Area 868 m²
Two more plots touch Erf 1139 at Peg 4 only, with no shared side: Erf 1151 and Erf 1162 (82 Johan Muller).

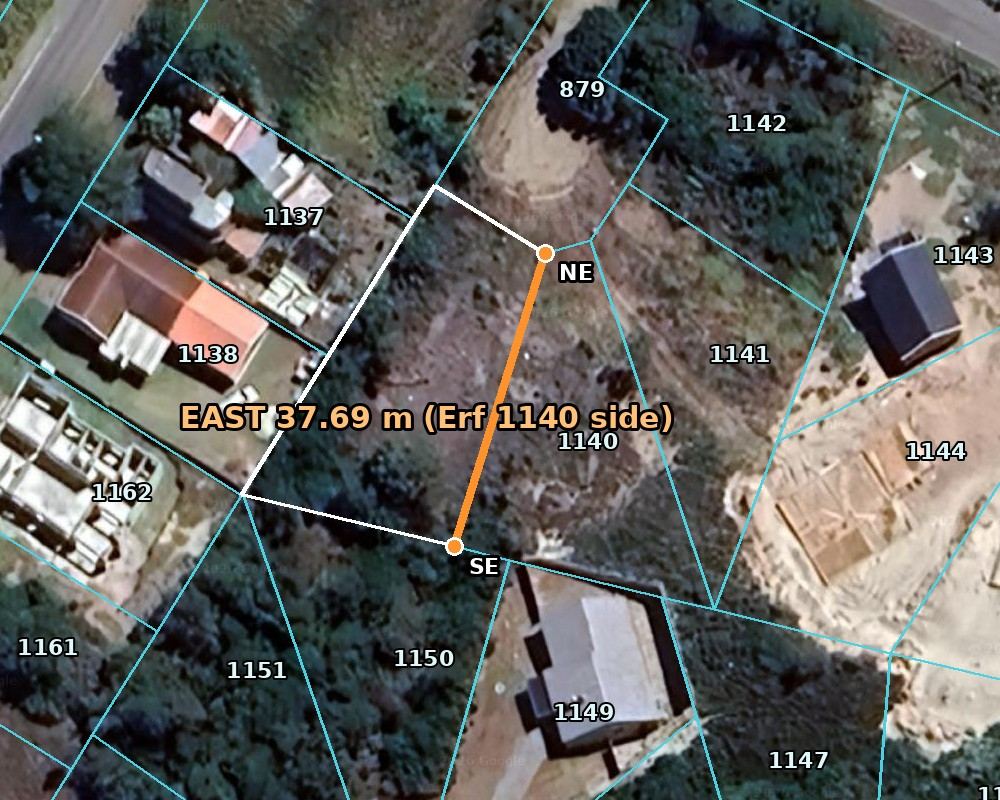

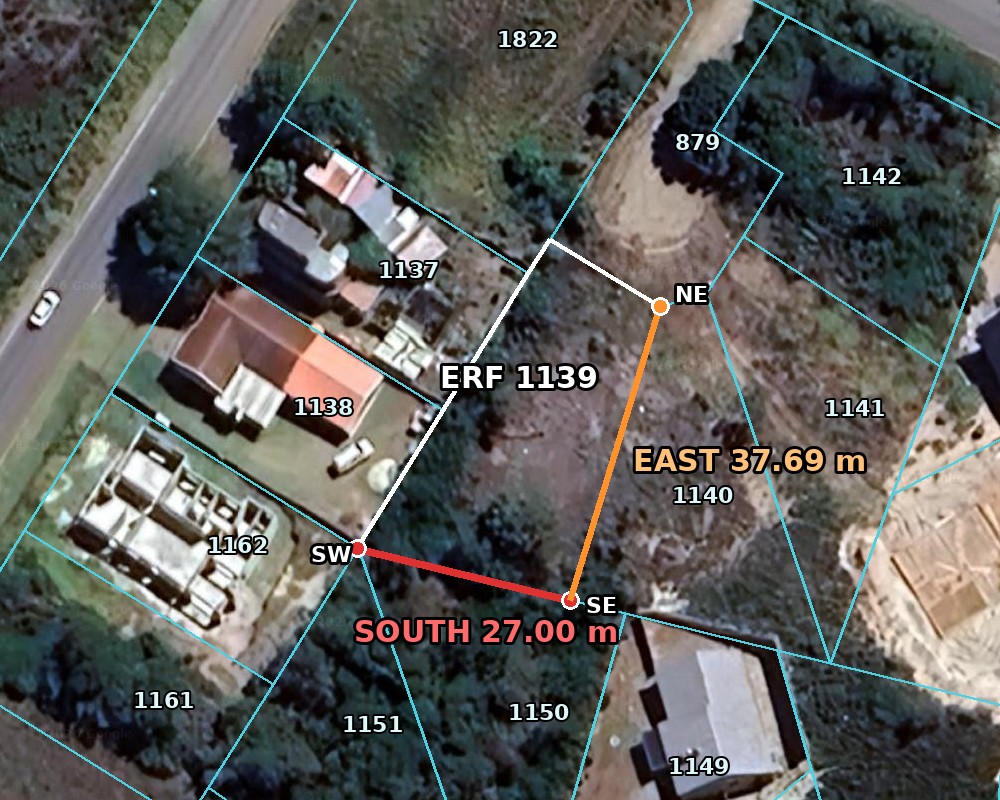

Tap the drawing to enlarge it. Drawn to scale from the registered figures. Red = our boundary. Grey = neighbouring plots. The pegs are numbered clockwise, starting at the street.Aerial photo with the same boundary drawn on it. Use it to recognise the place. The photo can sit a metre or two off, so never measure from it.
2 · Find the four pegs
What to look for: a 12 mm round iron peg (a short iron rod) at each corner, put in when the land was surveyed in 1987. It is usually at ground level or just under the sand. Use a metal detector or a probe, and dig by hand.
Peg 1 · street, west end Where the street front meets the long west line. The office plot (Erf 1137) starts 5.00 m further along the west line. GPS -34.096320, 24.892692
Peg 2 · street, east end 16.00 m from Peg 1 along the street front. Corner with Erf 1140. GPS -34.096397, 24.892839
Peg 3 · back corner, east Where Erf 1140 and Erf 1150 meet our plot. GPS -34.096721, 24.892718
Peg 4 · back corner, west Five plots meet here: 1139, 1138, 1162, 1151 and 1150. GPS -34.096665, 24.892434
GPS is only for walking to the right spot. A phone is 3 to 8 m out. The numbers above are good to about half a metre. Find the iron peg itself, then use string and tape.
Two helper pegs on the west line. The neighbours' corners sit on our west line and should also have iron pegs:
peg a: 5.00 m from Peg 1 (corner of Erf 1822 and Erf 1137). GPS -34.096359, 24.892663
peg b: 25.00 m from Peg 1 (corner of Erf 1137 and Erf 1138). GPS -34.096512, 24.892548
Peg 1, peg a, peg b and Peg 4 must all touch one straight string. If they do, the west line is proven.
Live GPS helper (use on site, on a phone)
GPS is off.
3 · Check the pegs with a tape
Use a steel tape, pulled tight and level. Write down what you measure. Every line must be within 5 cm of the figure below.
Measure
Must read
You measured
What it proves
Peg 1 → Peg 2
16.00 m
________
Street side
Peg 2 → Peg 3
37.69 m
________
East side
Peg 3 → Peg 4
27.00 m
________
South side
Peg 4 → Peg 1
45.00 m
________
West side
Peg 1 → Peg 3 (diagonal)
44.54 m
________
The shape is right. If the four sides are right but a diagonal is wrong, a peg has moved.
Peg 2 → Peg 4 (diagonal)
47.76 m
________
Peg 1 → peg a → peg b → Peg 4
5.00 · 20.00 · 20.00
________
West line is straight and complete
Quick square check at Peg 1. The street side and the west side meet at exactly 90° at Peg 1. From Peg 1 measure 12.00 m along the west string and make a mark. From that mark to Peg 2 must read 20.00 m.
The four side lengths are the registered figures. The diagonals and the square check are calculated from the registered figures.
If a peg cannot be found, or any measurement is out by more than 5 cm: STOP. Phone Alex. Do not move, pull out or concrete over a peg. Only a registered land surveyor may put a peg back.
4 · Where the fence goes
Looking along the fence. The same rule applies on all four sides.
Everything stays on our side of the string: posts, mesh, stays, footings and gate.
Post centres 200 mm inside the string. Footings no wider than 300 mm, so the footing also stays inside.
Corners: the corner post stands inside the corner. It never stands on the peg. Leave every peg untouched and visible.
Street side: the fence runs on our side of the Peg 1 to Peg 2 string. Nothing goes in the road reserve. The gate opens into the plot.
Old fences, hedges, paths and mown edges do not show the boundary. Only the pegs do.
Keep the strings up until the posts are in and Alex has seen them.
Lengths to fence
Section
Length
Street side (gate goes here)
16.00 m
East side, against Erf 1140
37.69 m
South side, against Erf 1150
27.00 m
West side, against Erf 1138 (Peg 4 to peg b)
20.00 m
West side, against Erf 1137, our office (peg b to peg a)
20.00 m
West side, against Erf 1822 (peg a to Peg 1)
5.00 m
All four sides
125.69 m
If the 20.00 m against our own office is left open
105.69 m
5 · The proof: Surveyor-General records
These are the official records the figures come from. Anyone can order the same plans from the Surveyor-General and compare.
Record
What it shows
General Plan 12794 L.G. No. 9249/89, sheets 1 to 3
The registered plan that created Erf 1139 (subdivision of Erf 1134 Paradysstrand). Surveyed November to December 1987 by land surveyors C.F. Deetlefs and M. Viljoen. Approved by the Surveyor-General on 11 May 1990. Sheet 2 shows the four sides: 16.00, 37.69, 27.00 and 45.00 m. Sheet 1 lists the area (868 m²), the beacon coordinates and the beacon type (12 mm iron pegs).
SG Diagram 1904/2010
Erf 1822 (76 Johan Muller) is old Erven 1135 and 1136 joined. Its corner D is the corner it shares with Erf 1137 and Erf 1139: that is peg a.
SG cadastre (current digital map)
The same plot and the same neighbours today. It matches the registered figures to within 10 cm at every corner.
Self-check of the figures. Walking the four registered sides with their registered directions returns to the starting peg within 1 mm, and gives an area of 867.75 m² against the registered 868 m². The figures agree with each other.

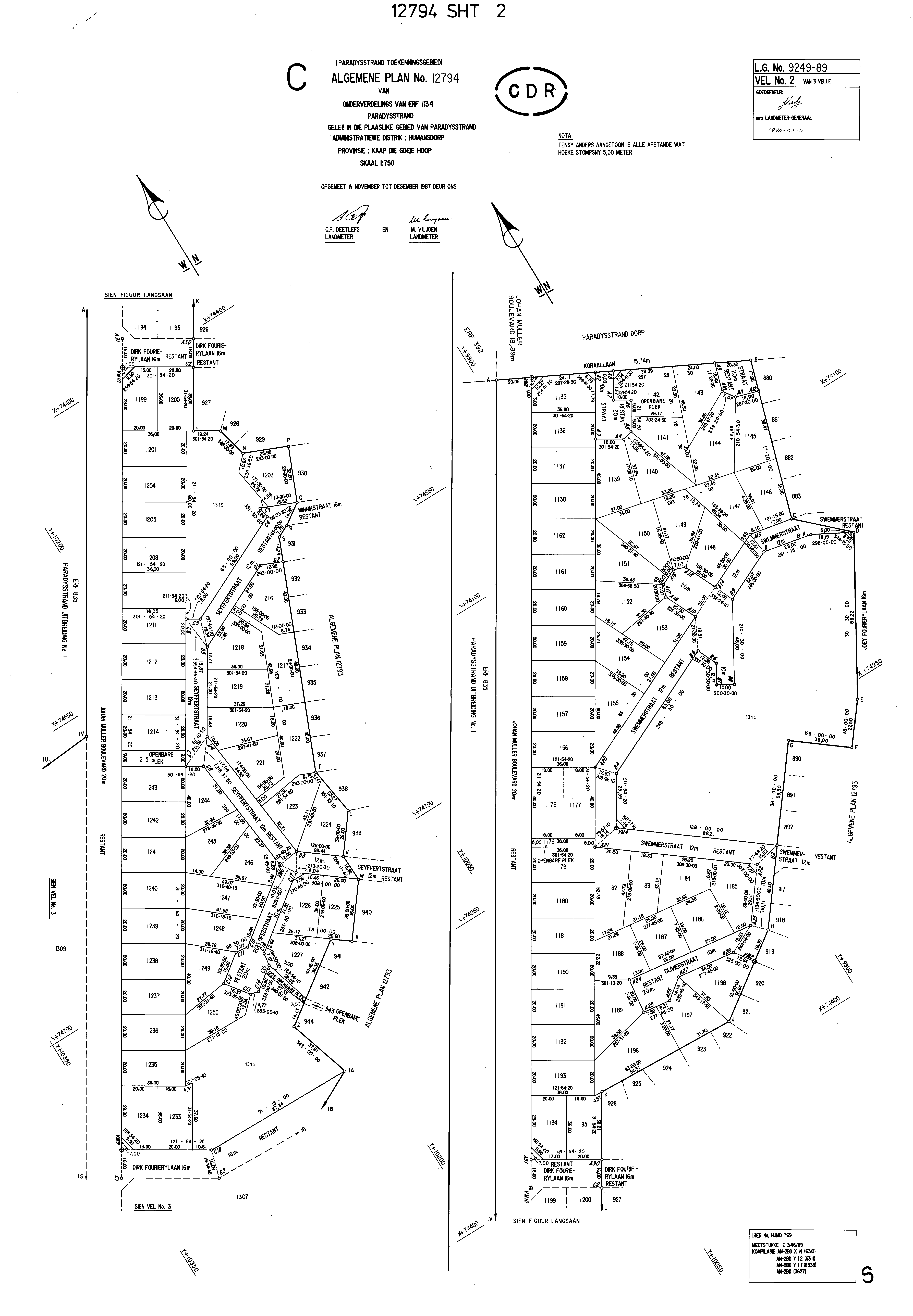

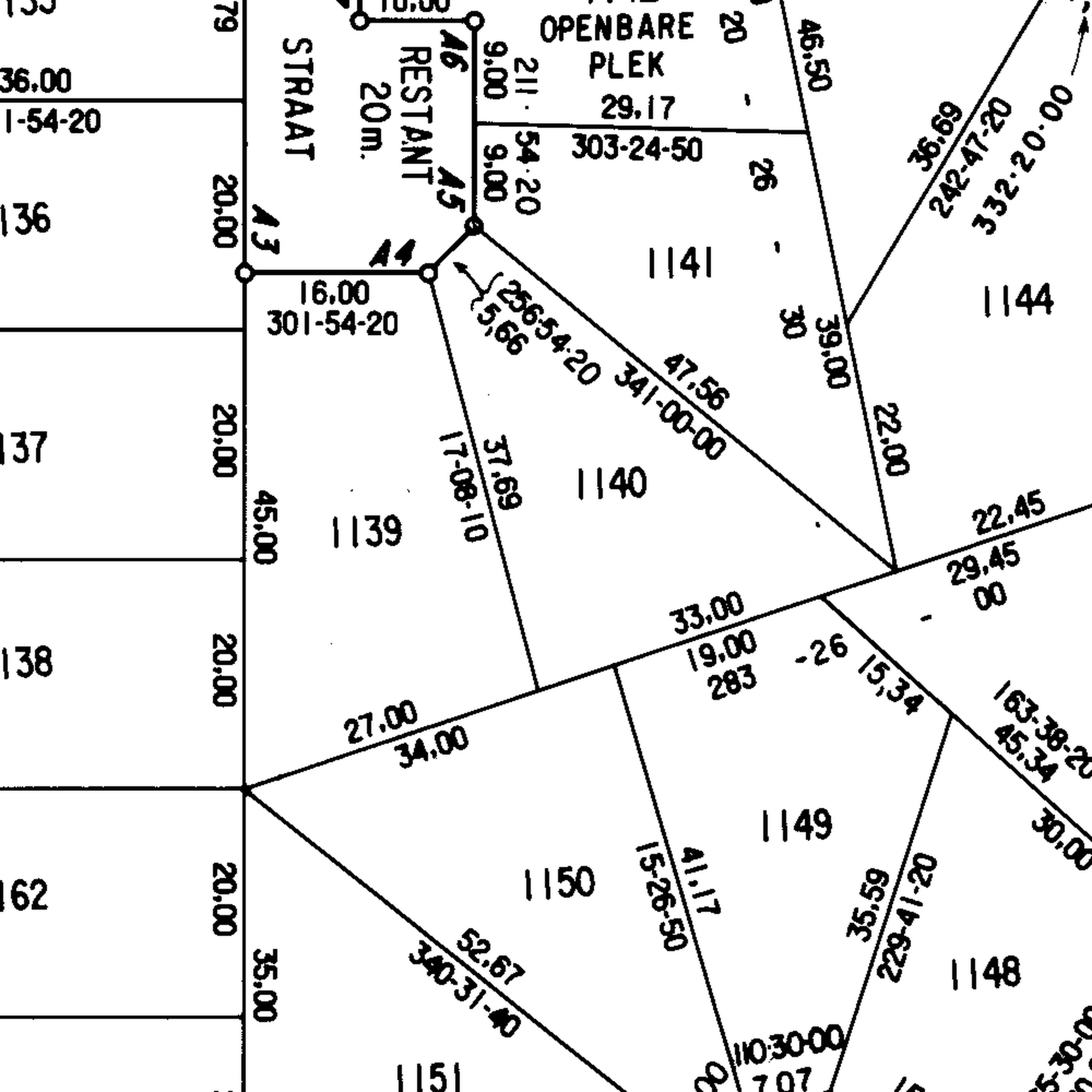

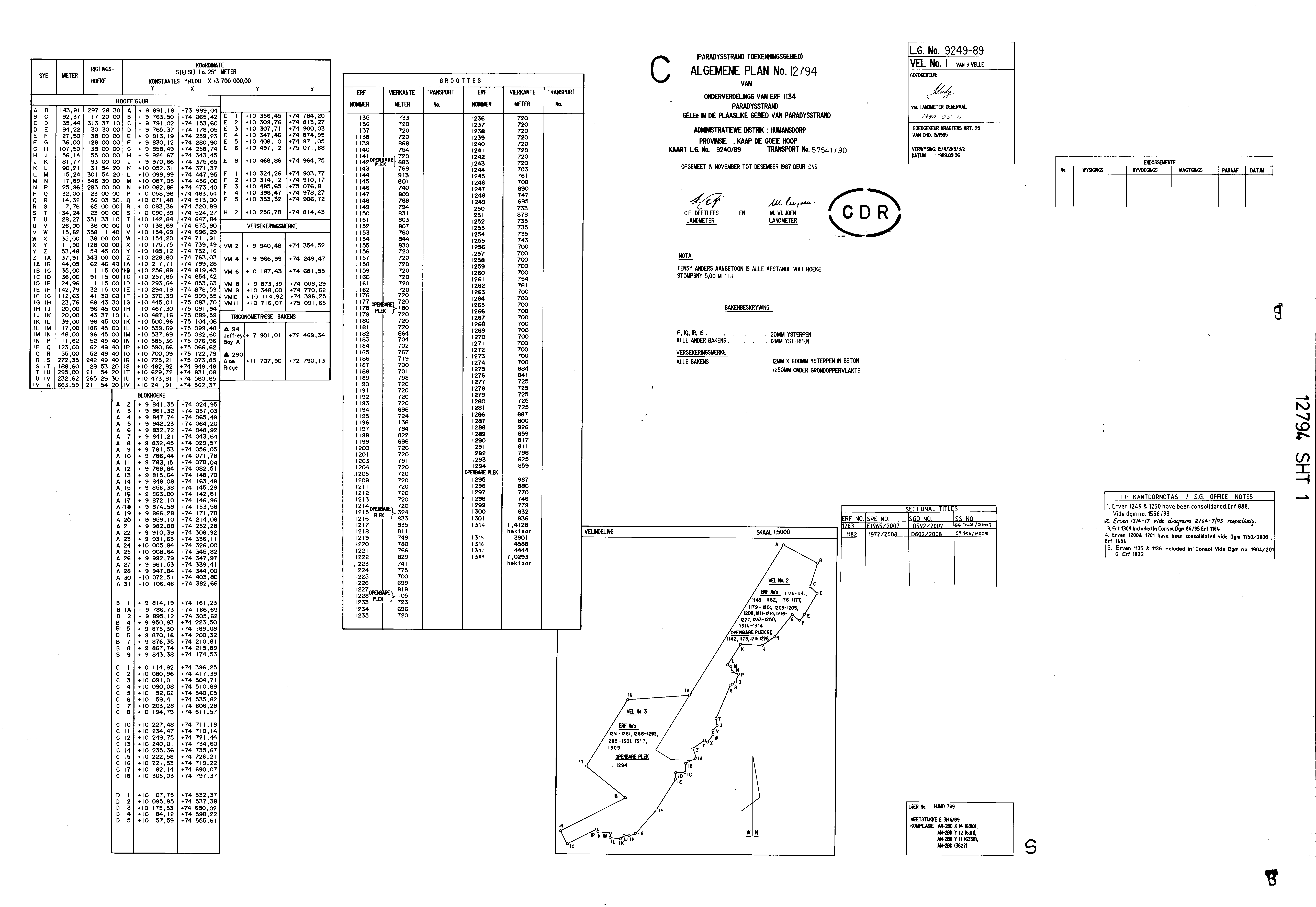

General Plan 12794, sheet 2, enlarged. Erf 1139 is left of centre: 16,00 at the street (beacons A3 and A4), 37,69 on the east, 27,00 on the south and 45,00 on the west. On the plan A3 is Peg 1 and A4 is Peg 2.General Plan 12794, sheet 1: registered coordinates of the street beacons. A3 is Peg 1, A4 is Peg 2.General Plan 12794, sheet 1: beacon description. "Alle ander bakens: 12 mm ysterpen" means all other beacons are 12 mm iron pegs.General Plan 12794, sheet 2, the full sheet. Erf 1139 is in the right-hand block, near the top.SG Diagram 1904/2010: Erf 1822, the plot at the street end of our west line.
6 · The neighbourhood and the whole suburb

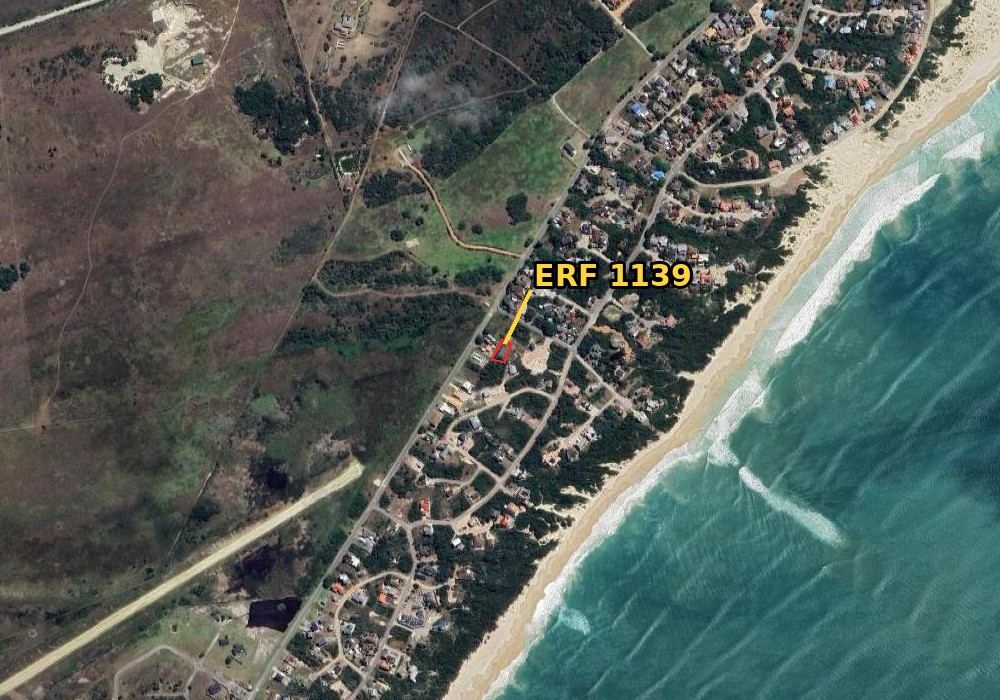

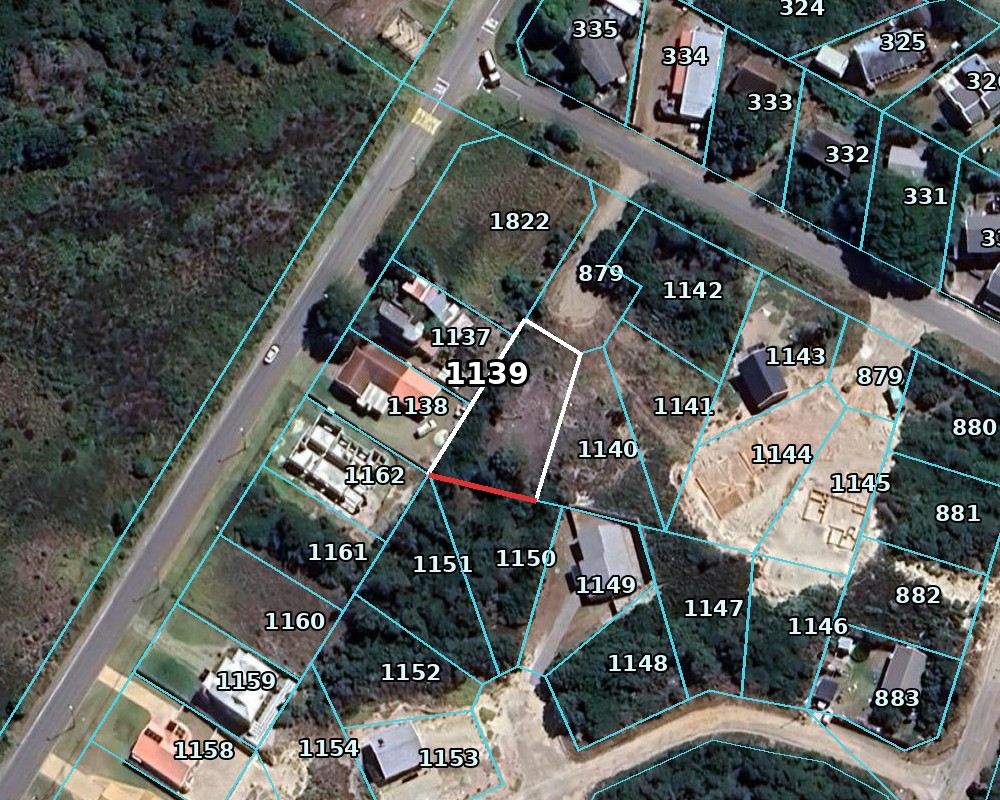

The block around Erf 1139 (outlined in red).Surrounding blocks with erf numbers, from the SG cadastre. Erf 1139 in red.The whole of Paradise Beach: every erf on the SG cadastre, with Erf 1139 marked. Open the zoomable version to read every erf number.

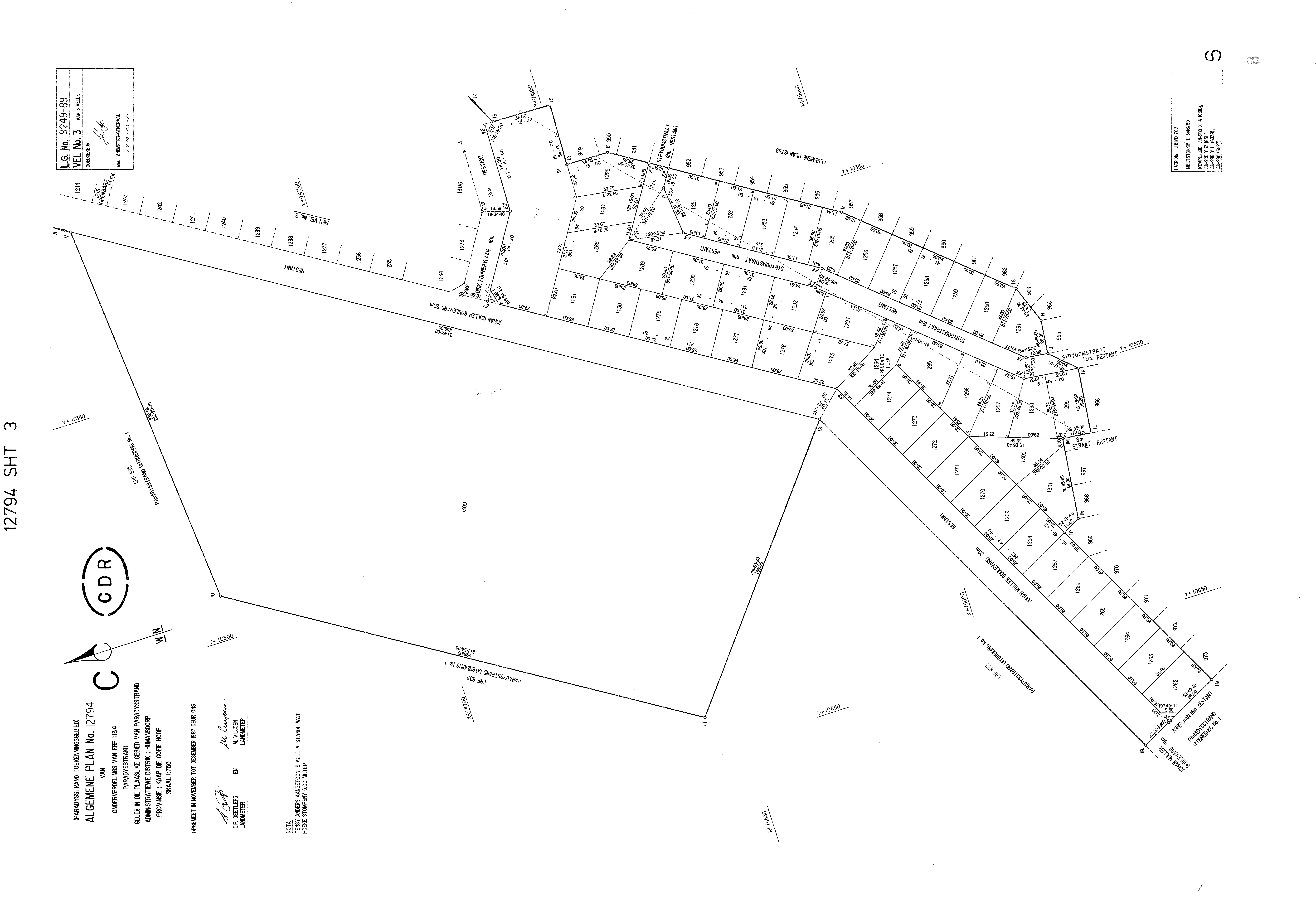

The whole-suburb SG cadastre map and the full General Plan 12794 sheets 1 to 3 follow at the end of this document.
Only needed if a peg is missing or the tape check fails. A registered professional land surveyor can put the pegs back from the figures below, and the surveyor's beacon certificate then settles the position.
Point
Y (m)
X (m)
Source
Corner angle
Peg 1 = beacon A3
+9 861,32
+3 774 057,03
Listed on GP 12794 sheet 1
90°00'00"
Peg 2 = beacon A4
+9 847,74
+3 774 065,49
Listed on GP 12794 sheet 1
104°46'10"
Peg 3
+9 858,84
+3 774 101,50
Calculated from the registered sides
93°42'10"
Peg 4
+9 885,10
+3 774 095,23
Calculated from the registered sides
71°31'40"
peg a
+9 863,96
+3 774 061,28
Calculated, 5.00 m from A3
peg b
+9 874,53
+3 774 078,25
Calculated, 25.00 m from A3
Side
Length
Direction on the plan
A3 → A4 (street)
16,00
301°54'20"
A4 → Peg 3 (east)
37,69
17°08'10"
Peg 3 → Peg 4 (south)
27,00
103°26'00" (plan shows 283°26'00")
Peg 4 → A3 (west)
45,00
211°54'20"
The coordinates are on the Lo 25° system as printed on the 1989 plan (constants Y 0, X +3 700 000). That is the old Cape datum. It is about 290 m different from modern GPS (WGS84 / Hartebeesthoek94) coordinates, so these numbers must never be typed into a GPS as they stand. A land surveyor will know how to use them.
